Description
Product Overview

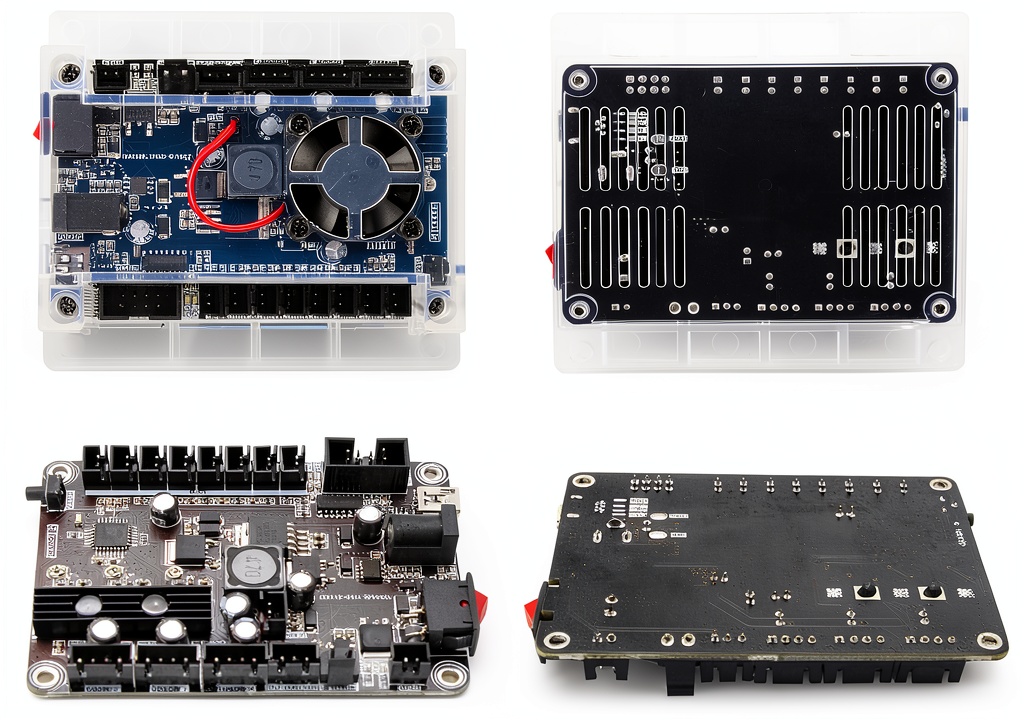

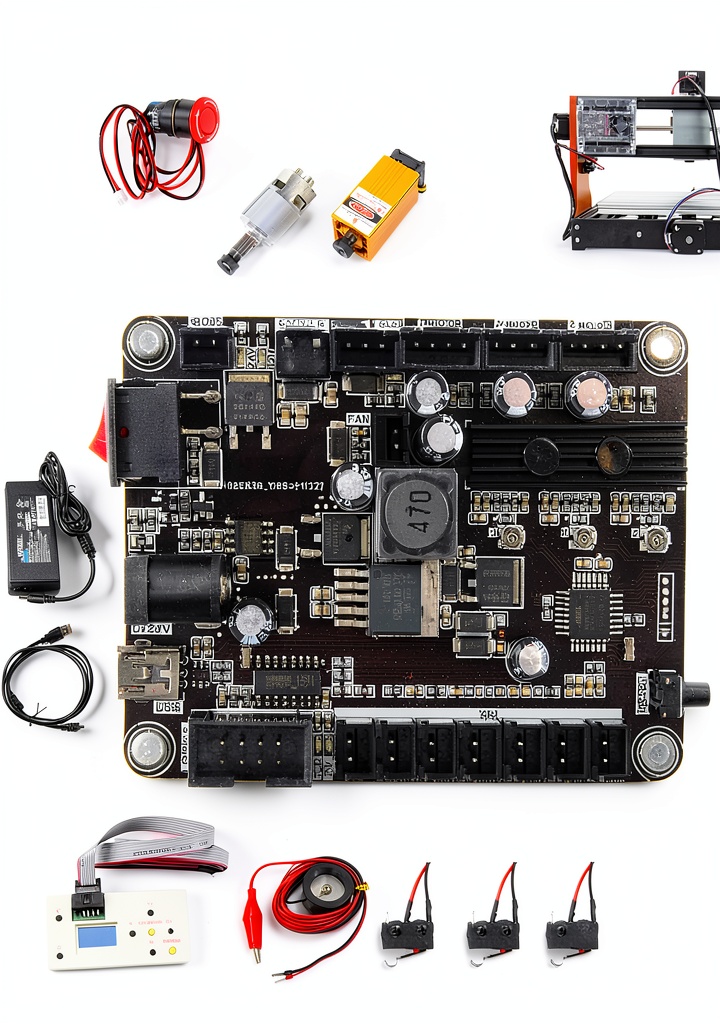

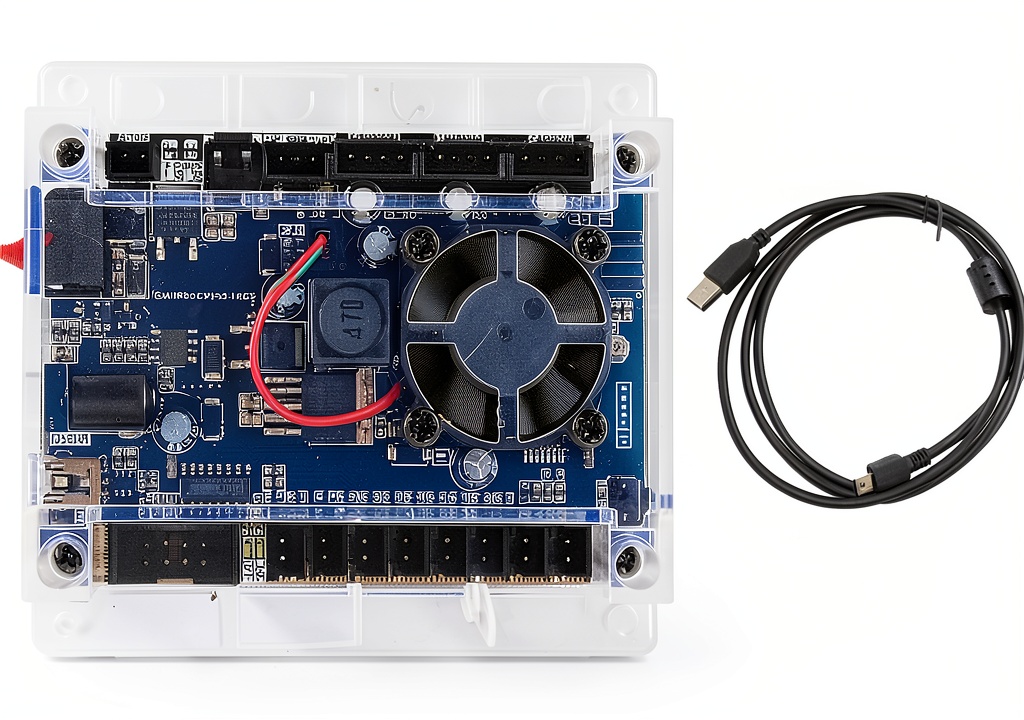

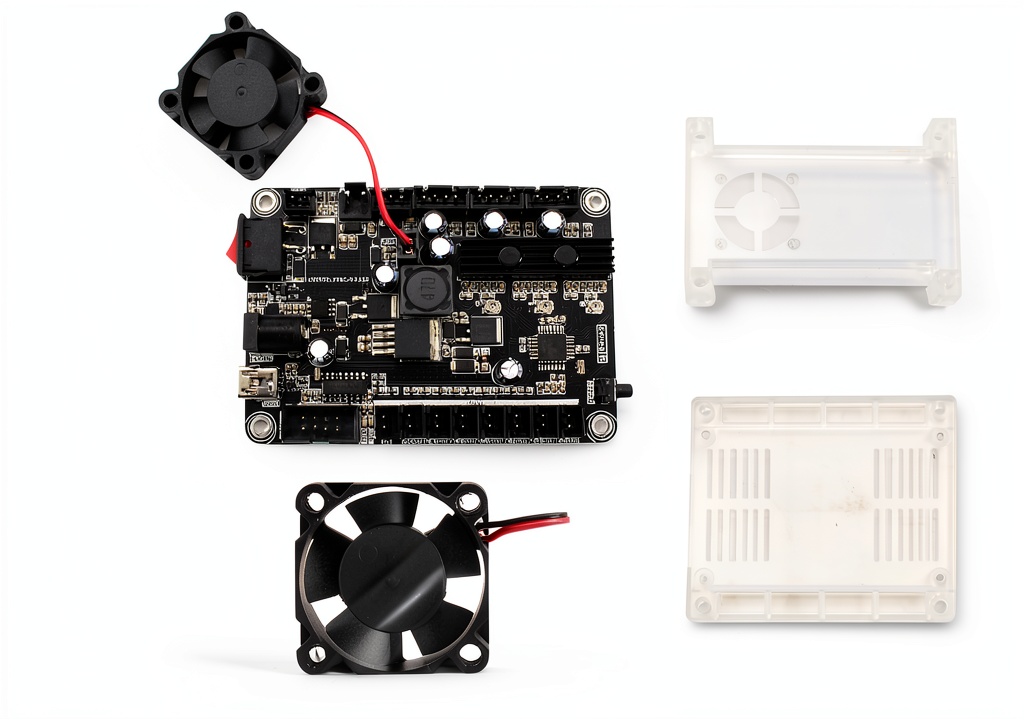

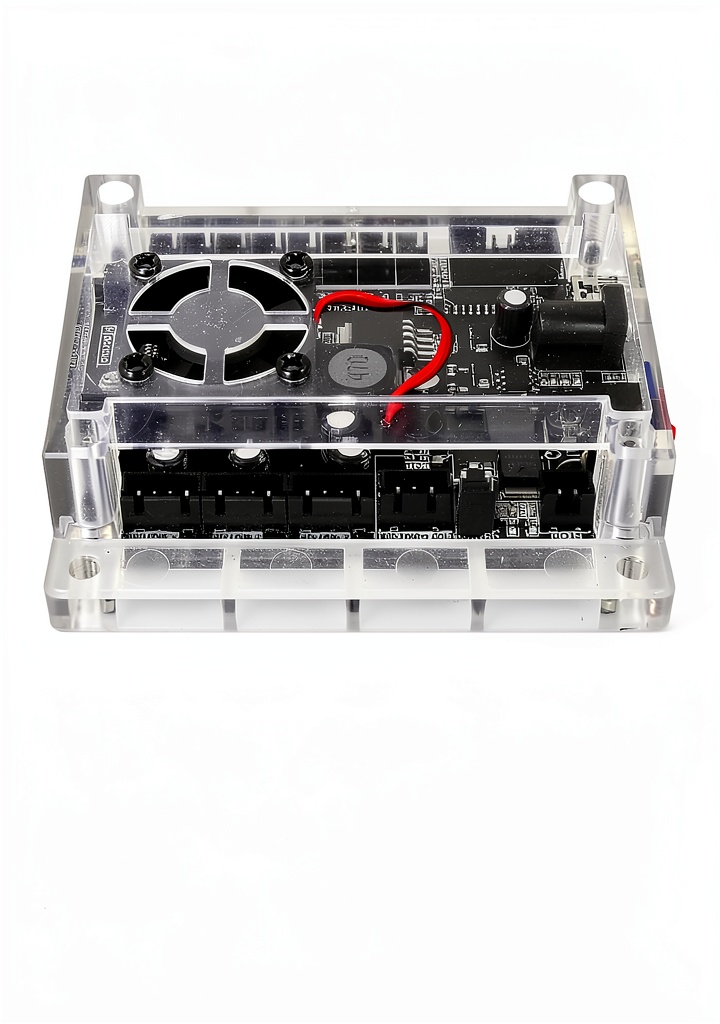

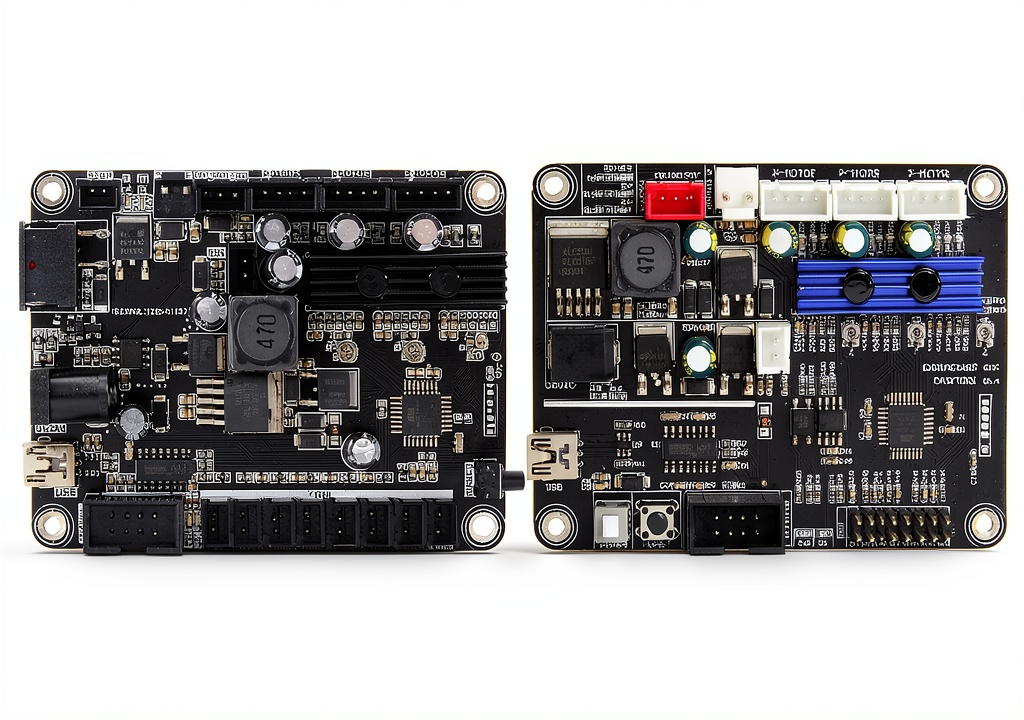

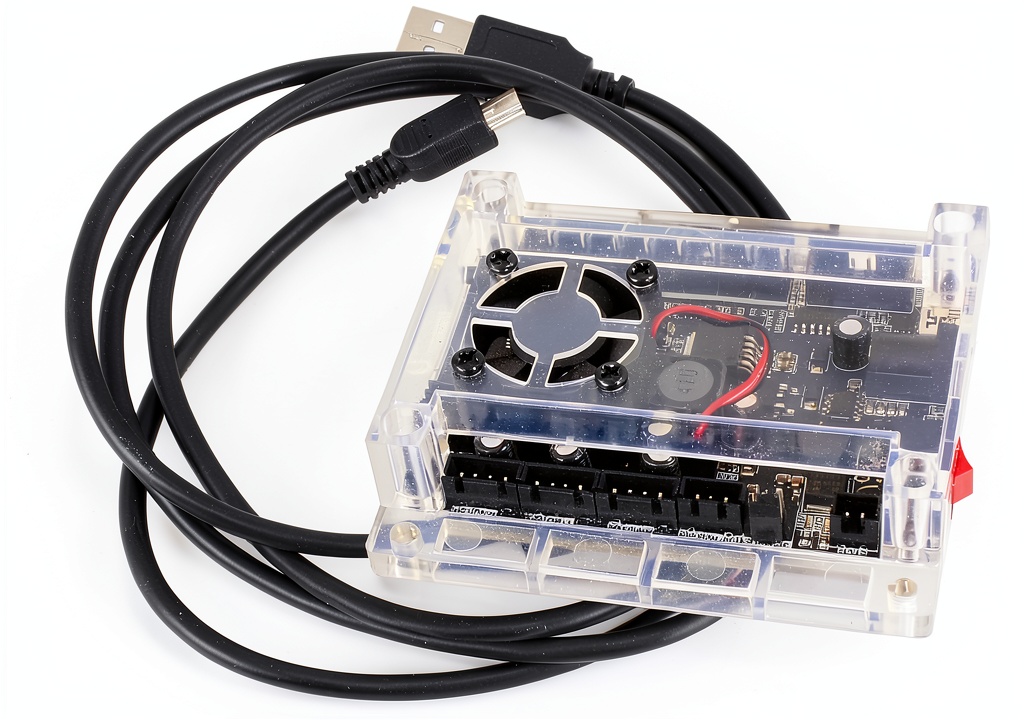

The CNCTOPBAOS 3 Axis GRBL 1.1f USB Port CNC Engraving Machine Controller Board is a high-performance control solution designed for CNC routers, engravers, and milling machines. It supports 3-axis control (X, Y, Z) and spindle control, making it ideal for precision engraving and milling tasks. The board features an LED display, operates at 24VDC, and is compatible with Windows XP/7/8/10. It includes new ports for emergency stop, probe, and XYZ limit switches, enhancing safety and functionality. The board is compact, weighing only 5 ounces, and measures 6 x 4.5 x 3.3 inches. Manufactured by Changzhou Rattm Motor Co., Ltd, it is designed for both hobbyists and small-scale manufacturers who require reliable and precise control for their CNC projects.
Usage
This controller board is ideal for use with CNC engraving machines such as the 3018-PRO, 1610-PRO, 3018-PRO-MAX, 1310, and other compatible models. It is suitable for hobbyists, small workshops, and educational institutions that need precise control for engraving, milling, and prototyping. The board supports popular software like GRBL Control, Candle (3 axis), and Universal Gcode Sender, making it easy to integrate into existing workflows. It is also compatible with stepper motors (Nema17, Nema23) and spindle motors, allowing for versatile applications in woodworking, metalworking, and plastic engraving.
Why Choose Us
The CNCTOPBAOS 3 Axis GRBL 1.1f USB Controller Board offers superior reliability and ease of use. It is designed with a compact form factor and robust construction to withstand regular use. The inclusion of emergency stop, probe, and limit ports ensures safety during operation. The board is compatible with a wide range of CNC machines and software, making it a versatile choice for both beginners and experienced users. The manufacturer, Changzhou Rattm Motor Co., Ltd, provides consistent quality and support, ensuring long-term performance.
Key Features
- Supports 3-axis control (X, Y, Z) and spindle control for precise engraving and milling.
- Compatible with Windows XP/7/8/10 and popular software like GRBL Control and Universal Gcode Sender.
- Includes emergency stop, probe, and XYZ limit ports for enhanced safety and control.
- Compact design (6 x 4.5 x 3.3 inches) and lightweight (5 ounces) for easy installation.
- Manufactured by Changzhou Rattm Motor Co., Ltd with reliable quality and responsive customer support.
FAQ
What CNC machines is this controller board compatible with?
This controller board is compatible with 3018-PRO, 1610-PRO, 3018-PRO-MAX, 1310, and other similar CNC engraving machines. It supports 3-axis control and spindle control for precise engraving and milling tasks.
What operating systems does it support?
The board supports Windows XP, Windows 7, Windows 8, and Windows 10. It is compatible with popular software such as GRBL Control, Candle (3 axis), and Universal Gcode Sender.
What types of motors can it support?
It supports stepper motors (Nema17, Nema23) and spindle motors. The recommended maximum current for stepper motors is 2A, with 1.5A being ideal to avoid overheating.
Does it include safety features?
Yes, it includes an emergency stop button, probe port, and XYZ limit ports to enhance safety during operation. These features help prevent damage to the machine and materials.
What is the warranty or support policy?
The manufacturer, Changzhou Rattm Motor Co., Ltd, provides reliable quality assurance and responsive customer support. The product is not discontinued and is available for purchase with a 4.3-star rating from 276 customer reviews.
