Description
Product Overview

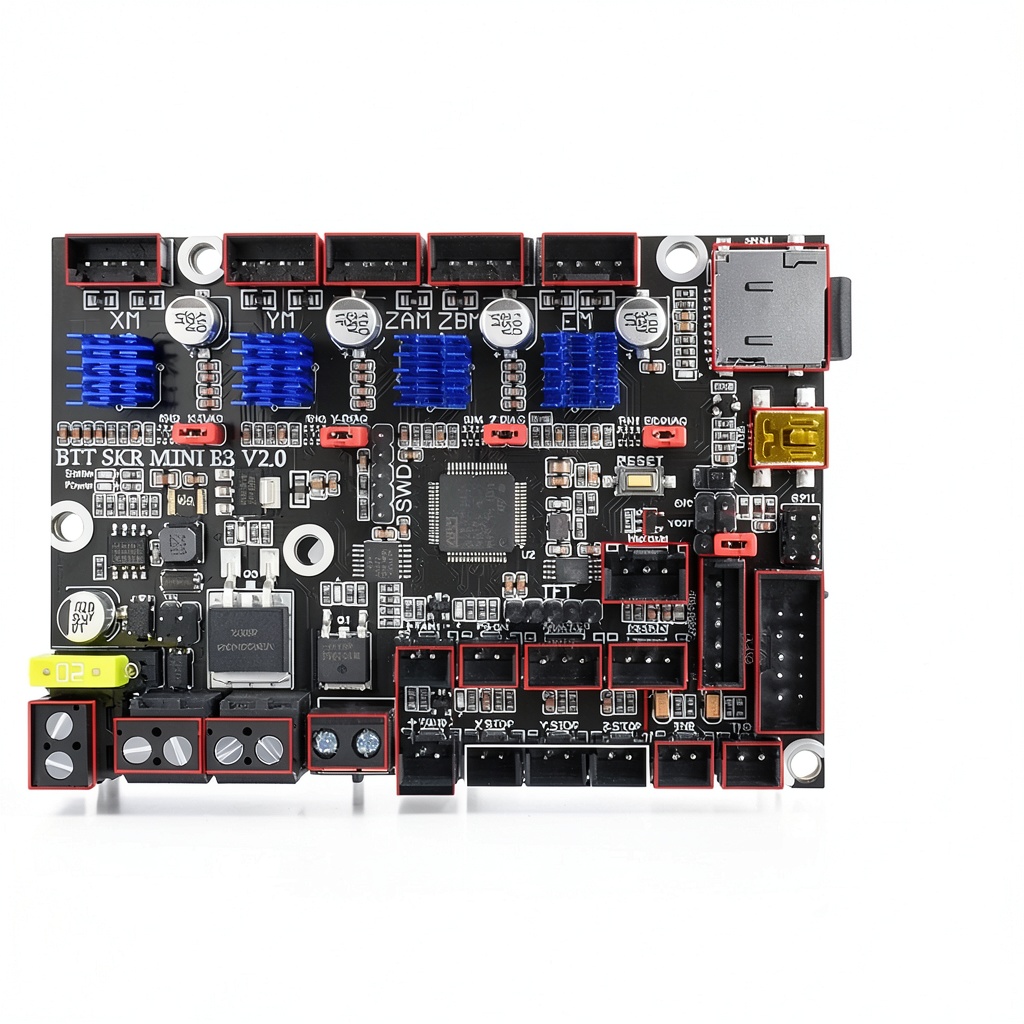

The BIGTREETECH SKR Mini E3 V2.0 is a compact 32‑bit control board engineered for the popular Ender 3 family of printers, including the original Ender 3, Ender 3 V2, Ender 3 Pro, and the larger Ender 5. Powered by an ARM Cortex‑M3 STM32F103RCT6 microcontroller running at 72 MHz, the board delivers the processing power needed for advanced motion planning, higher acceleration, and smoother curve handling. Integrated TMC2209 stepper drivers operate in UART mode, providing silent, micro‑stepping control with dynamic current adjustment, which reduces audible noise and improves print quality. The board’s four‑layer PCB design, combined with a low‑resistance MOSFET hot‑bed driver (WSK220N04), enhances thermal dissipation, keeping critical components cool even during extended high‑temperature prints. Physical dimensions of 4 × 2.8 × 0.39 inches and a weight of just 4.2 oz make it a lightweight yet robust upgrade that fits neatly within the printer’s electronics enclosure.

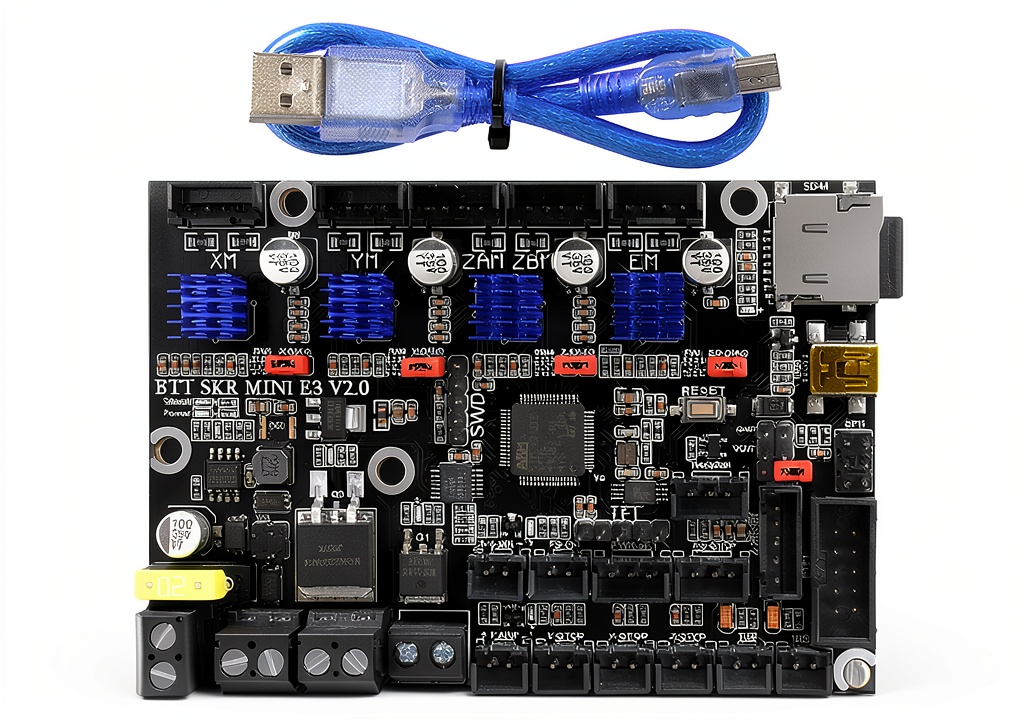

![[Product front view showing all components]](https://www.halvix.store/wp-content/uploads/2026/08/5f7996d8c4cc438aa4192b4632524e8d.jpg)
Usage
This board is a true drop‑in replacement for the stock Creality motherboard. Users simply disconnect the original board, mount the SKR Mini E3 V2.0, and connect the existing wiring harnesses. The board supports a wide range of firmware, including the popular Marlin 2.0+ and RepRapFirmware, allowing users to customize features such as linear advance, pressure advance, and input shaping. It is ideal for hobbyists who want to reduce the characteristic stepper motor whine of the Ender series, as well as for small‑scale professionals seeking more reliable thermal management during long, high‑resolution prints. The integrated UART TMC2209 drivers enable advanced features like sensorless homing, which eliminates the need for mechanical end‑stop switches, and the board’s firmware can be easily updated via USB or SD card, ensuring future compatibility with new slicer settings and printer upgrades.
Why Choose Us
Choosing the BIGTREETECH SKR Mini E3 V2.0 means selecting a board that has been rigorously tested for durability and performance. The four‑layer construction reduces electromagnetic interference, which translates to more stable stepper signals and fewer missed steps during rapid acceleration. The board’s enhanced heat‑dissipation area protects the TMC2209 drivers from thermal throttling, extending their lifespan and maintaining consistent torque output. BIGTREETECH provides comprehensive documentation, including wiring diagrams, firmware configuration guides, and video tutorials, ensuring a smooth installation experience. In addition, the company offers responsive customer support through Amazon messaging, ready to assist with troubleshooting, firmware configuration, or any compatibility questions. This level of after‑sales service gives users confidence that their investment will be supported throughout the product’s lifecycle.
Key Features

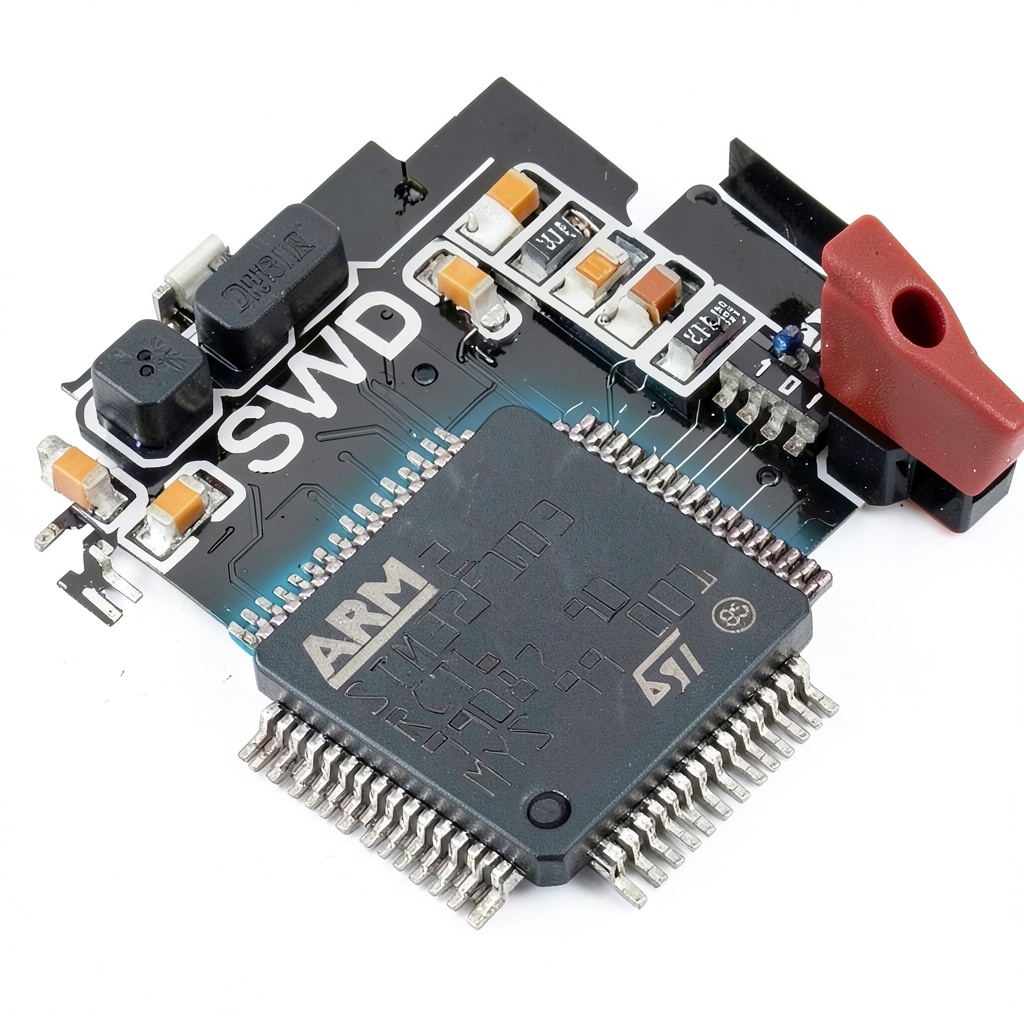

- 32‑bit ARM Cortex‑M3 processor delivers fast, reliable motion control for complex prints.

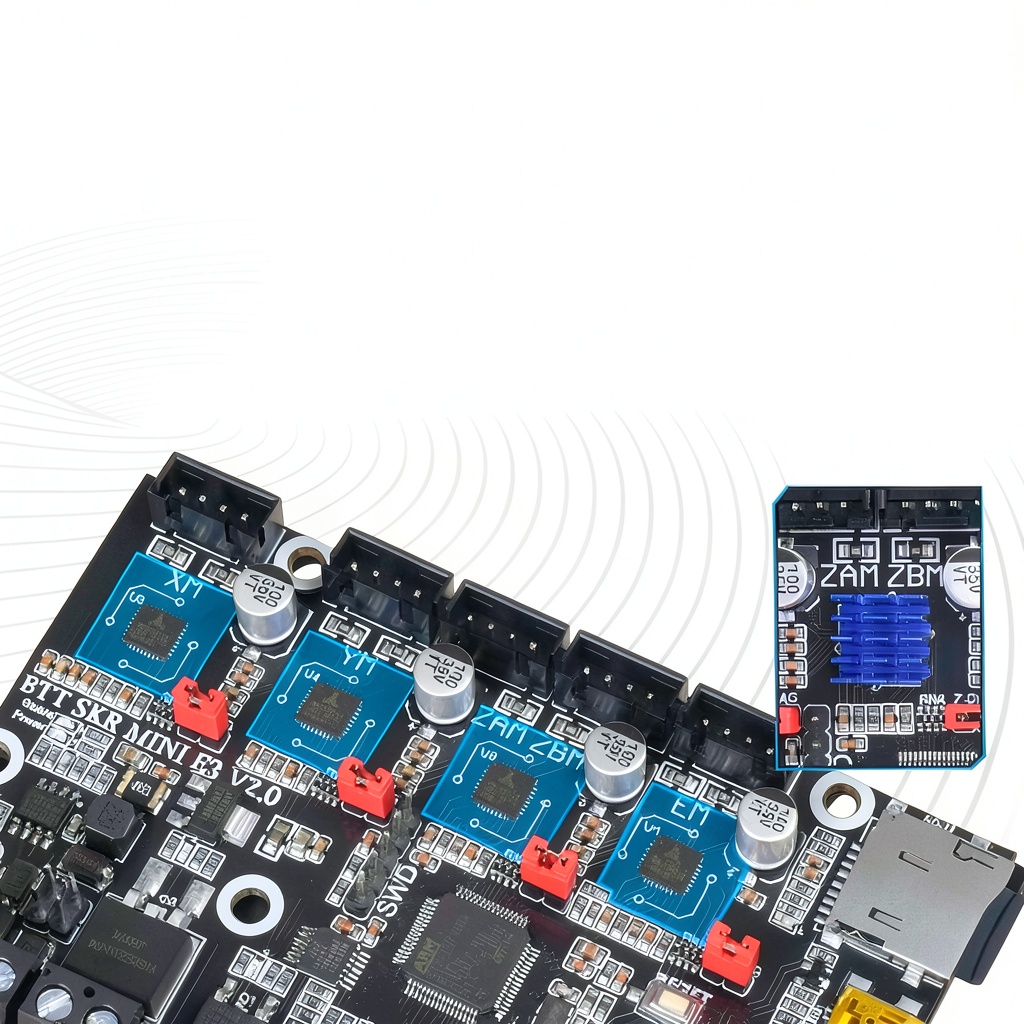

- Integrated TMC2209 UART drivers provide silent operation and sensorless homing.

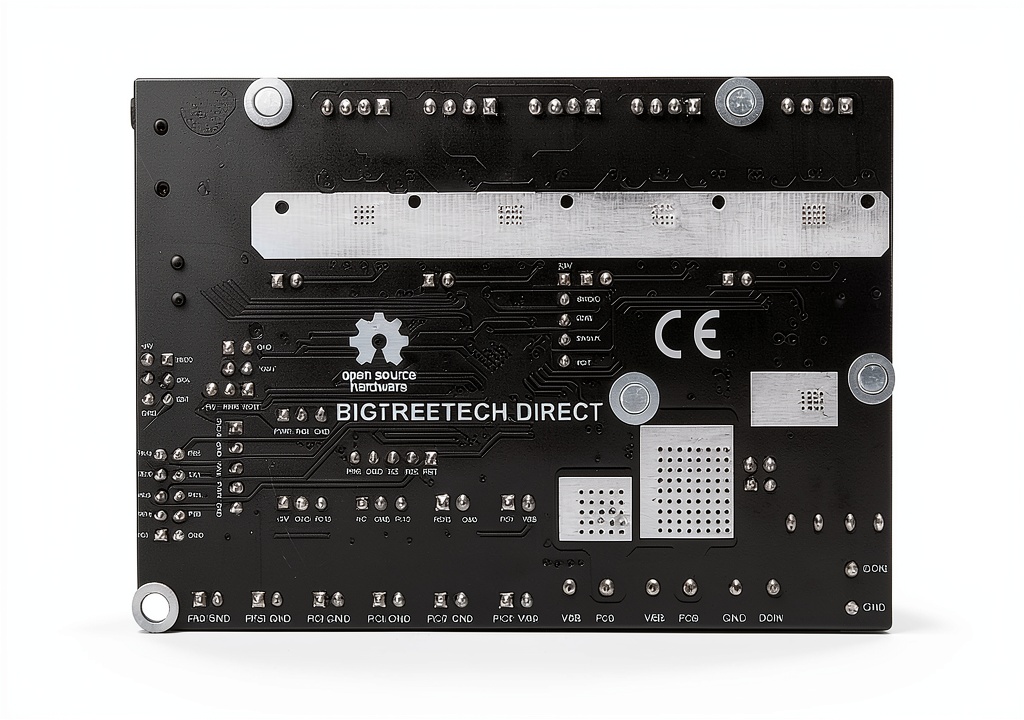

- Four‑layer PCB with enlarged heat‑dissipation area keeps electronics cool during long runs.
- Supports BLTouch, filament run‑out detection, power‑loss recovery, and other advanced functions.
- Responsive BIGTREETECH customer service ensures help with setup, firmware, and troubleshooting.
FAQ
Is the SKR Mini E3 V2.0 compatible with all Ender 3 models?
Yes, the board is designed as a drop‑in replacement for the original Ender 3, Ender 3 V2, Ender 3 Pro, and Ender 5, using the same connector layout and voltage specifications.
Do I need to replace the stepper motors when installing this board?
No. The integrated TMC2209 drivers are compatible with the stock stepper motors. You only need to connect the existing motor wires to the new board.
Can I use this board with Marlin firmware?
Absolutely. BIGTREETECH provides a pre‑configured Marlin 2.0+ configuration file that you can flash via USB or SD card, enabling all advanced features out of the box.
What is sensorless homing and how does it work on this board?
Sensorless homing uses the TMC2209 driver’s ability to detect motor stall conditions, allowing the printer to find its home position without physical end‑stop switches. This reduces wiring complexity and improves reliability.
How does the board handle power loss during a print?
The board includes power‑loss recovery firmware support. When power is restored, the printer can resume the interrupted print from the last known layer, minimizing material waste.
