MKS V1.0 3D Printer Control Board by WALFRONT with ESP32 and 8GB Flash

Description

Product Overview

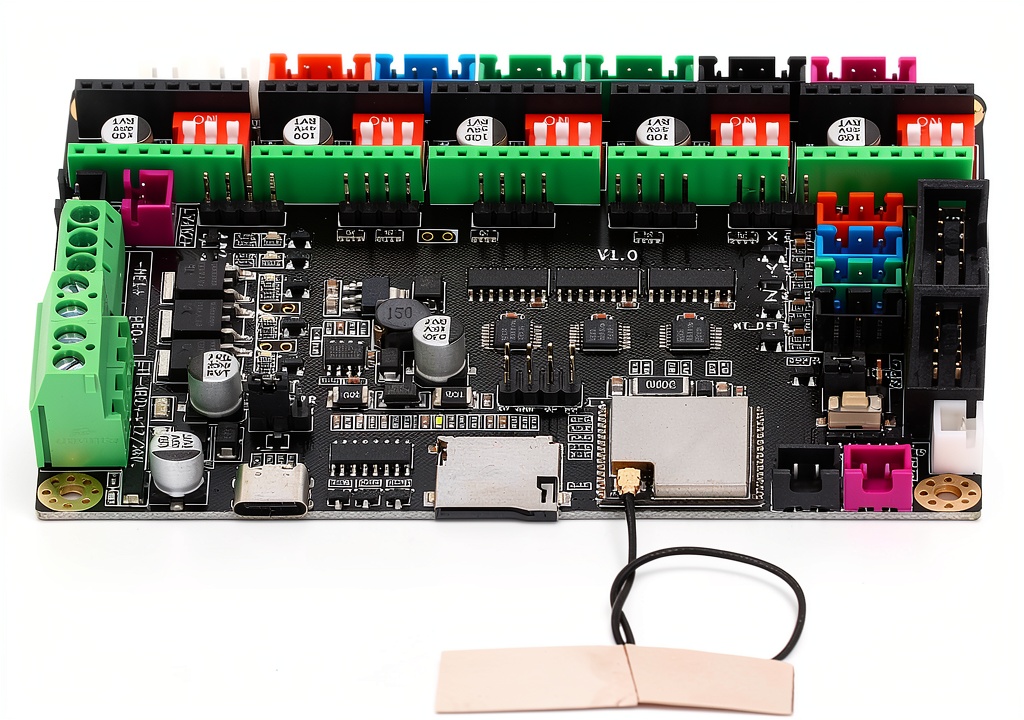

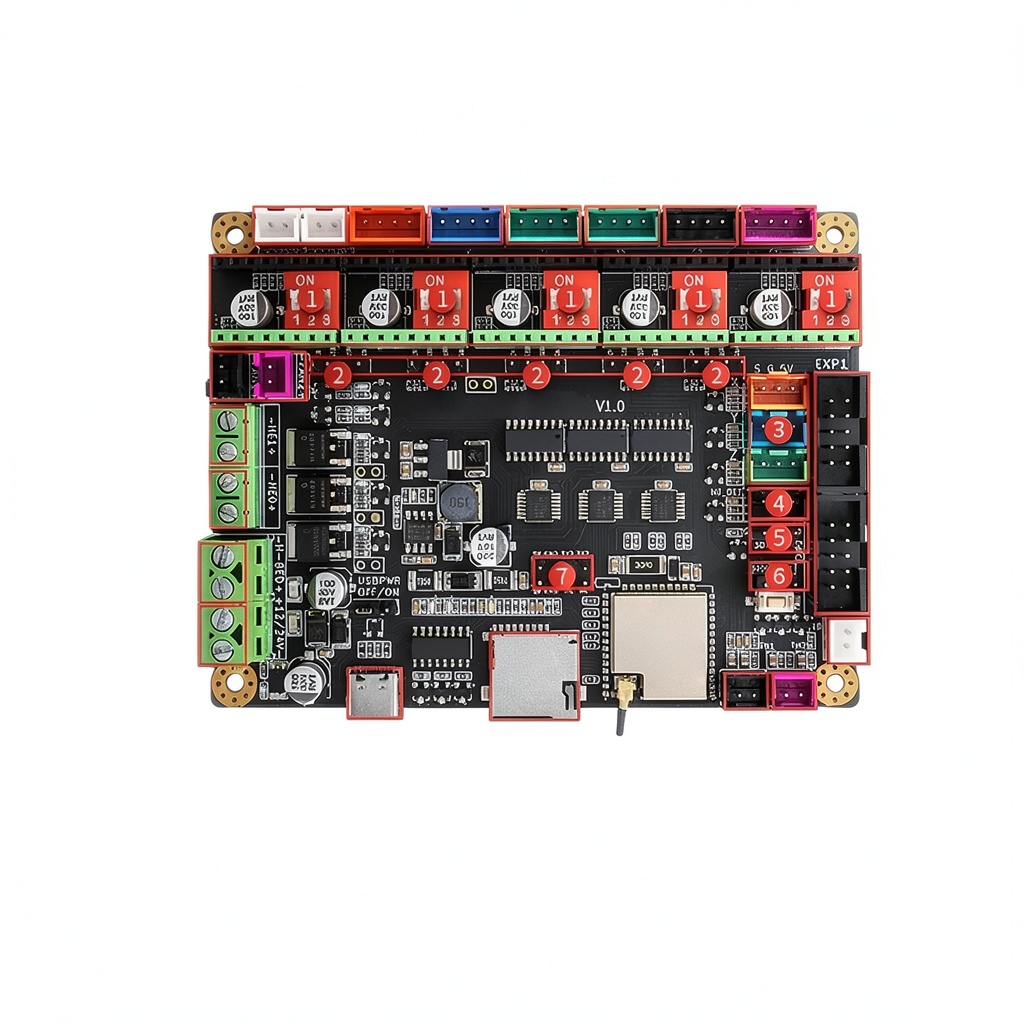

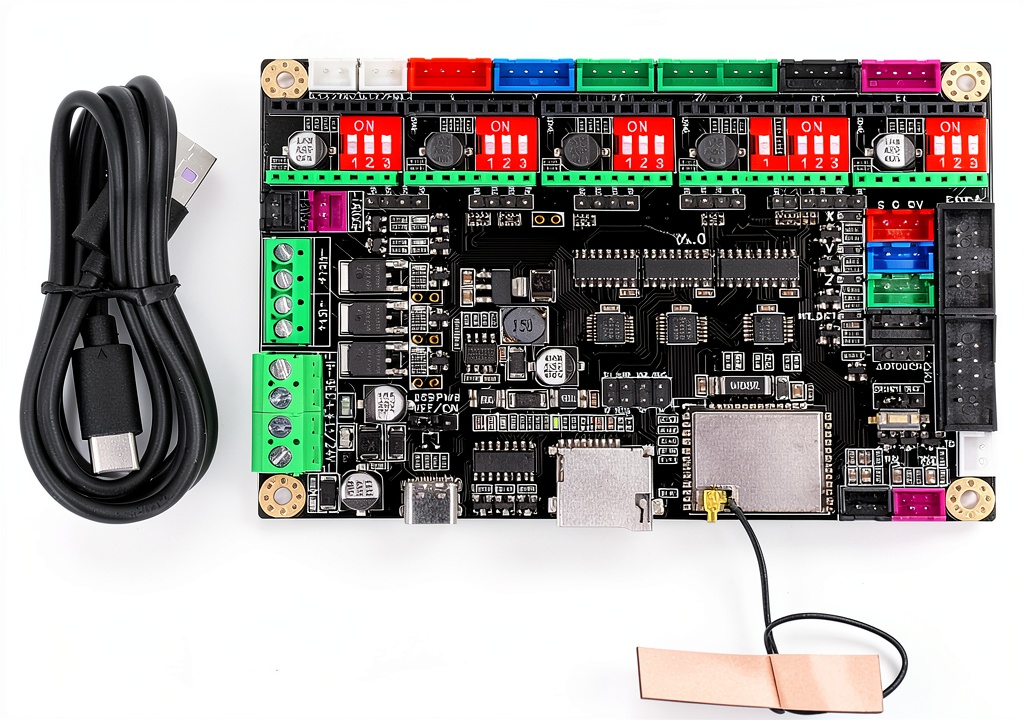

The MKS V1.0 control board is engineered to meet the demanding needs of modern additive manufacturing environments. Built around the powerful ESP32 WROOM 32U module, the board delivers a 240 MHz Xtensa LX6 processor that provides rapid data handling and real‑time control for complex printing tasks. Integrated 8 MB flash storage expands firmware capacity, allowing users to store multiple configurations, custom G‑code scripts, and advanced plugins without sacrificing performance. The board operates across a wide voltage range of 12‑24 V DC, making it compatible with a broad spectrum of stepper motor drivers and power supplies commonly found in both hobbyist and industrial 3D printers. Its compact dimensions—measuring just 6.54 × 5.47 × 2.09 inches—and lightweight construction at 5.6 ounces simplify mounting within tight printer enclosures, while the robust PCB layout ensures reliable long‑term operation under continuous thermal cycling.

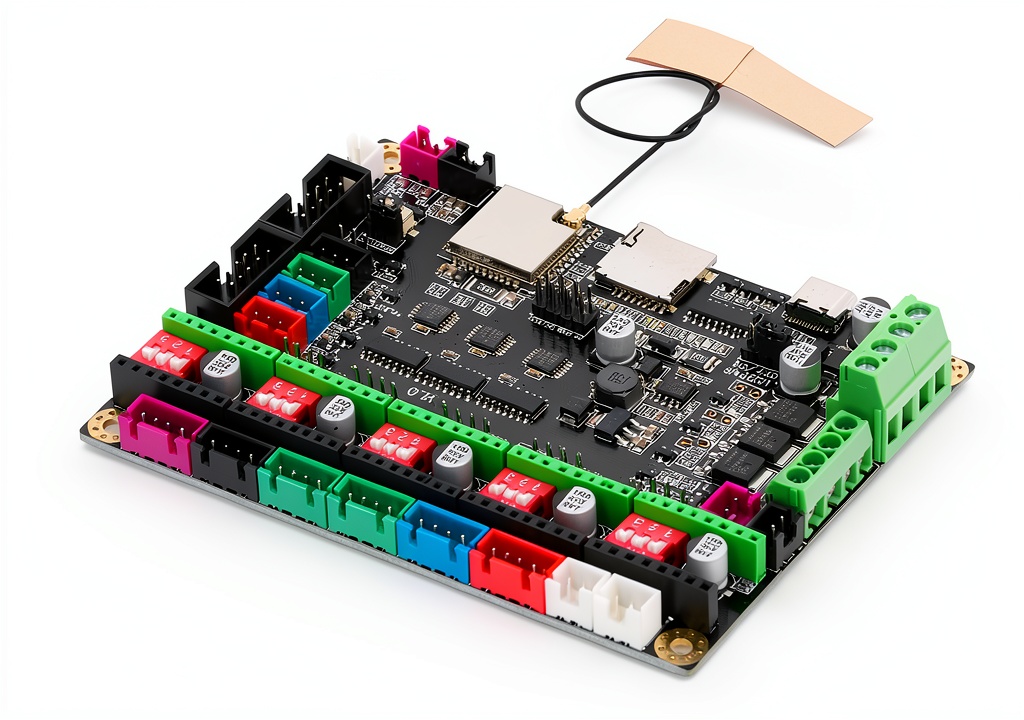

Designed with flexibility in mind, the MKS V1.0 supports the popular Marlin 2.0 firmware out of the box, enabling seamless integration with existing printer setups. In addition to standard LCD2004 and 12864 displays, the board is fully compatible with the MKS MINI12864 V3 and MKS TFT series, providing users with a range of visual interfaces to suit their preferences. The onboard Wi‑Fi and Bluetooth capabilities of the ESP32 module open up remote monitoring and control possibilities, allowing operators to start, pause, or adjust print jobs from smartphones, tablets, or computers without direct physical access to the machine. This connectivity also facilitates over‑the‑air firmware updates, reducing downtime and simplifying maintenance procedures.

Usage

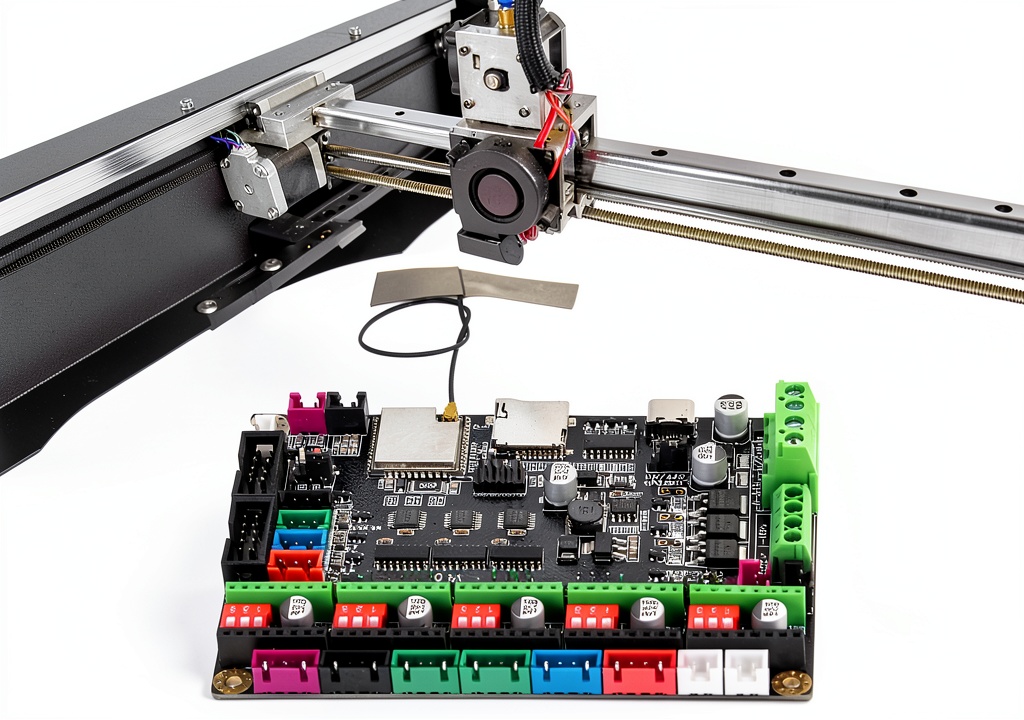

Whether you are a seasoned professional fabricating functional prototypes or a hobbyist exploring creative designs, the MKS V1.0 adapts to a variety of printing scenarios. Its broad voltage compatibility makes it an ideal upgrade for printers that previously relied on older, less efficient control boards, extending the lifespan of existing hardware while delivering modern performance. The board excels in environments where precise temperature regulation and rapid motor response are critical, such as high‑resolution resin printers, large‑format FDM machines, and multi‑extruder setups that demand synchronized motion control.

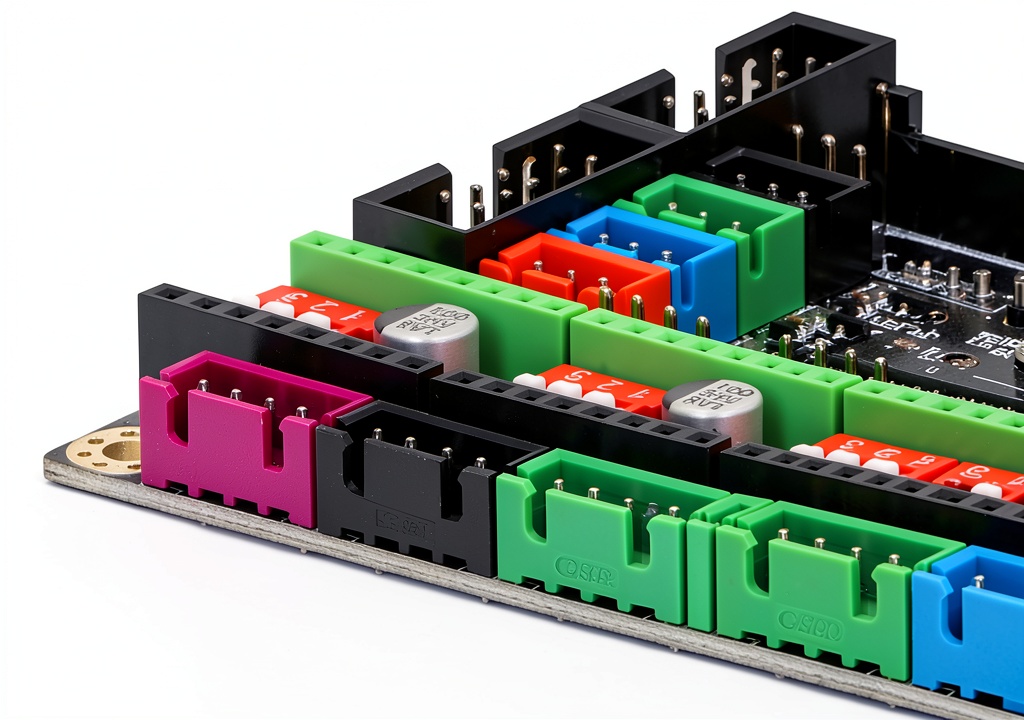

In educational settings, the MKS V1.0 provides a hands‑on learning platform for students studying embedded systems, robotics, and IoT integration. The ESP32’s built‑in Wi‑Fi and Bluetooth modules enable classroom projects that incorporate remote sensor data collection, cloud‑based monitoring dashboards, and collaborative printing workflows. For makerspaces and community workshops, the board’s ease of installation—thanks to its plug‑and‑play connectors and clear labeling—means that new users can get a printer up and running within minutes, reducing the learning curve and encouraging experimentation.

Industrial users benefit from the board’s robust design and reliable communication protocols. The high‑speed processor handles complex kinematic calculations, reducing latency and improving print accuracy, which is essential for producing parts that meet strict dimensional tolerances. Additionally, the board’s ability to store multiple firmware profiles in its ample flash memory allows factories to switch between different material settings or production lines without re‑flashing, streamlining workflow transitions and minimizing production downtime.

Why Choose Us

Choosing the MKS V1.0 means investing in a product that combines cutting‑edge technology with proven reliability. WALFRONT, the manufacturer, has a reputation for delivering high‑quality electronic components that undergo rigorous testing throughout the production process. Each control board is inspected for solder joint integrity, component placement accuracy, and functional performance before it leaves the factory, ensuring that customers receive a product that meets or exceeds industry standards.

Our commitment to customer satisfaction extends beyond the point of sale. We provide comprehensive technical documentation, including wiring diagrams, firmware configuration guides, and troubleshooting manuals, all available for free download on our website. Should you encounter any challenges during installation or operation, our dedicated support team is reachable via email, live chat, and a community forum where experienced users share tips, custom scripts, and firmware tweaks.

Furthermore, the MKS V1.0 is backed by a 12‑month limited warranty that covers manufacturing defects and component failures under normal operating conditions. This warranty reflects our confidence in the durability of the board’s design and the quality of the components used, such as the ESP32 WROOM 32U module, which is sourced from reputable suppliers and tested for performance consistency.

Environmental responsibility is also a core value for WALFRONT. The board is designed with RoHS‑compliant materials, and our packaging minimizes plastic usage while still protecting the product during transit. By selecting the MKS V1.0, you are supporting a manufacturer that prioritizes sustainable practices without compromising on performance.

Key Features

• Integrated ESP32 module provides built‑in Wi‑Fi and Bluetooth for remote monitoring and firmware updates.
• 8 MB flash storage expands firmware capacity, enabling multiple profiles and custom plugins.
• Wide 12‑24 V DC input range ensures compatibility with diverse power supplies and stepper drivers.
• Compact, lightweight design simplifies installation in tight printer enclosures.
• Comprehensive after‑sales support, including documentation, community forums, and a 12‑month warranty.

FAQ

What firmware does the MKS V1.0 support?

The board is fully compatible with Marlin 2.0 and can run other open‑source firmware that supports ESP32, such as RepRapFirmware, provided the configuration is adjusted accordingly.

Can I use the board with a 24 V power supply?

Yes, the MKS V1.0 accepts input voltages from 12 V up to 24 V DC, making it suitable for a wide range of stepper driver setups and printer models.

Is the board compatible with touchscreen displays?

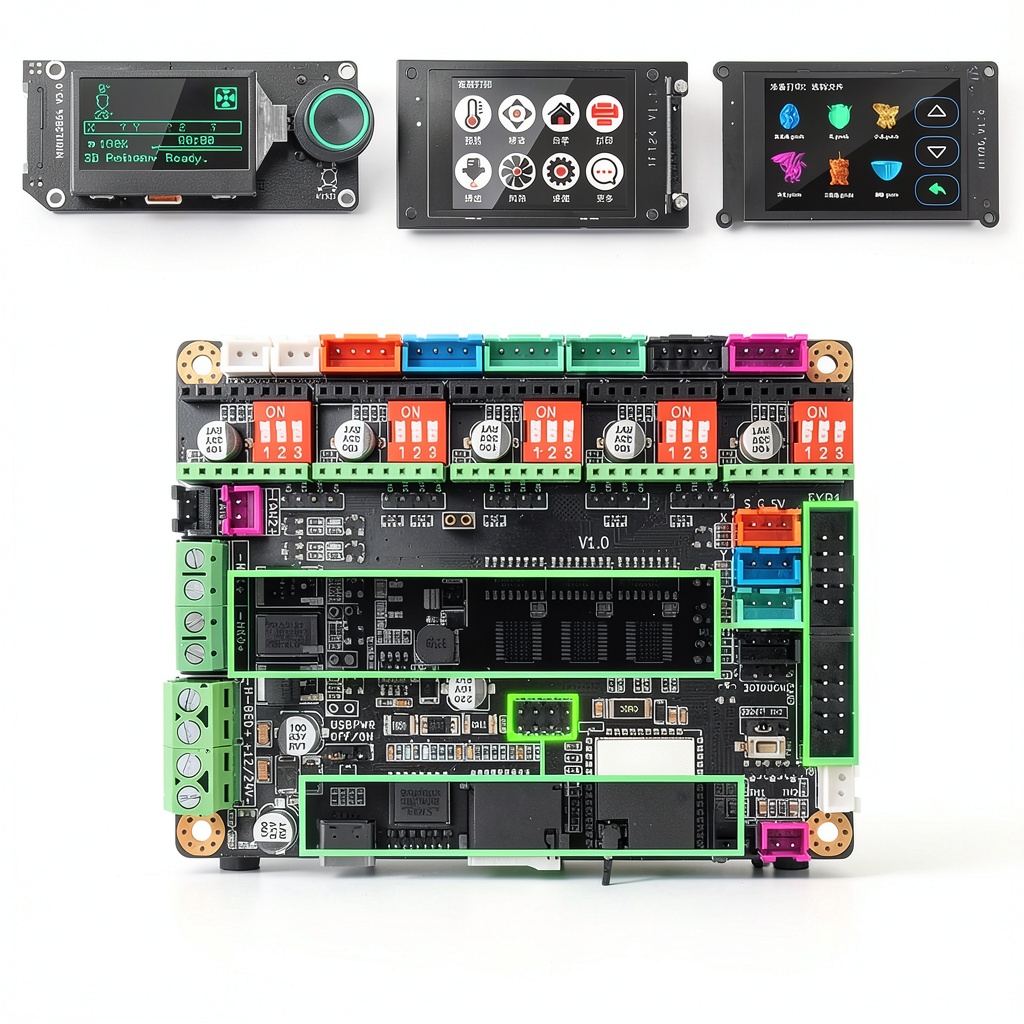

Absolutely. In addition to standard LCD2004 and 12864 panels, the board works with MKS MINI12864 V3 and MKS TFT series touchscreens, offering flexible UI options.

How do I update the firmware wirelessly?

Using the ESP32’s Wi‑Fi capability, you can upload new firmware via the Arduino IDE or PlatformIO over the network. Detailed step‑by‑step guides are provided in the online documentation.

What warranty does WALFRONT provide?

WALFRONT offers a 12‑month limited warranty covering manufacturing defects. Support is available through email, live chat, and an active user community.
